Automatic Measurement & Manufacturing System for Adjustment Pipe
Adjustment Pipe Processing Step 6
Measurement

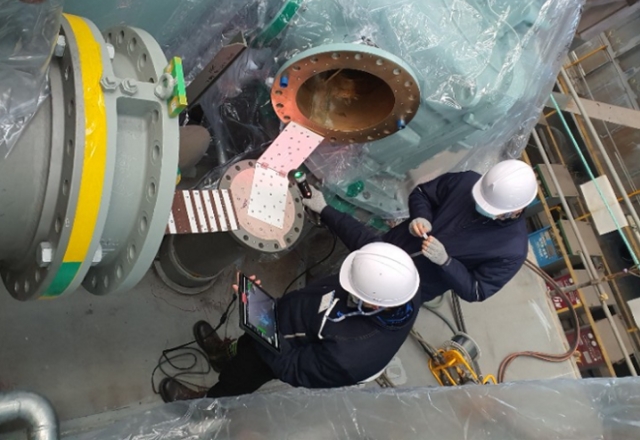

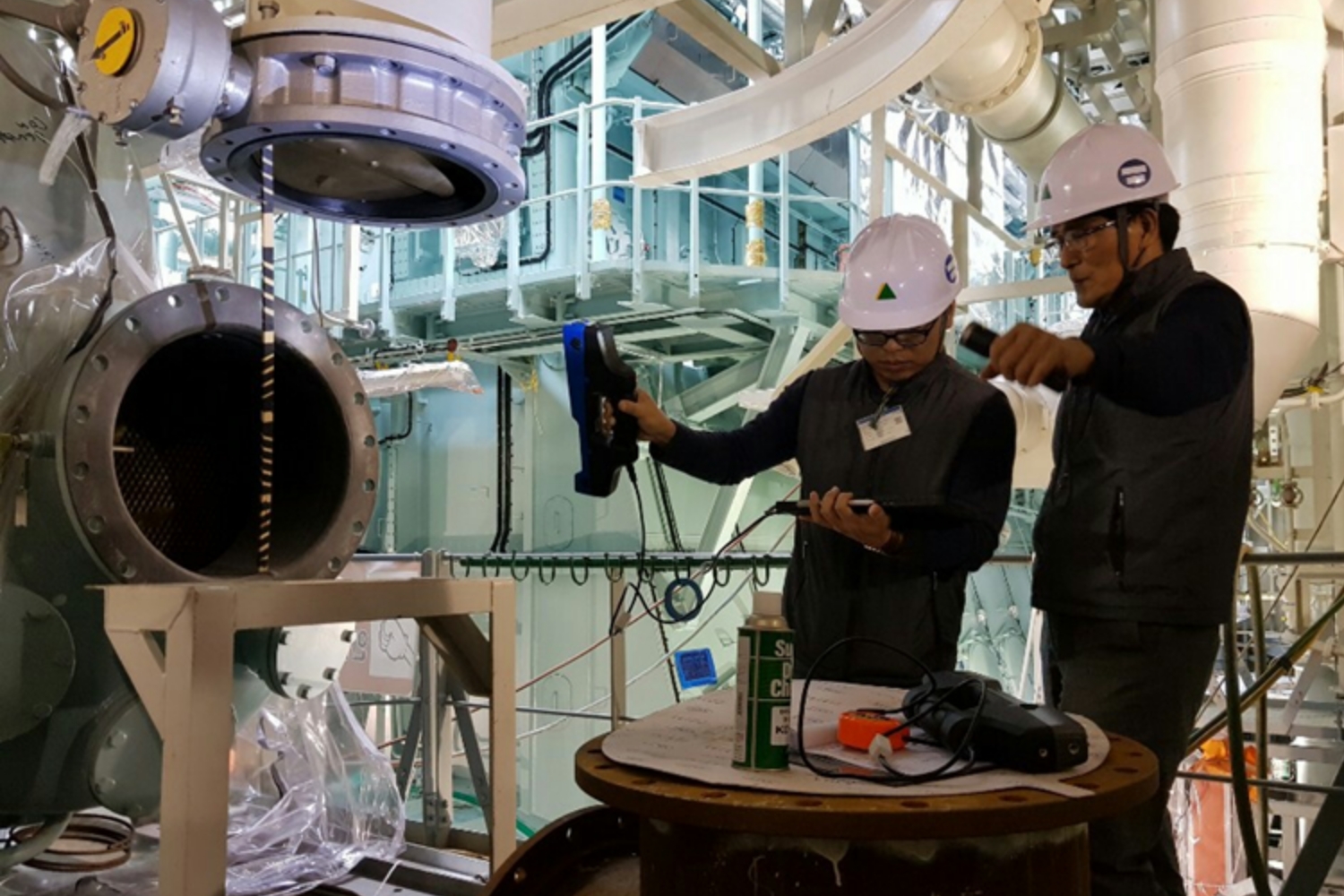

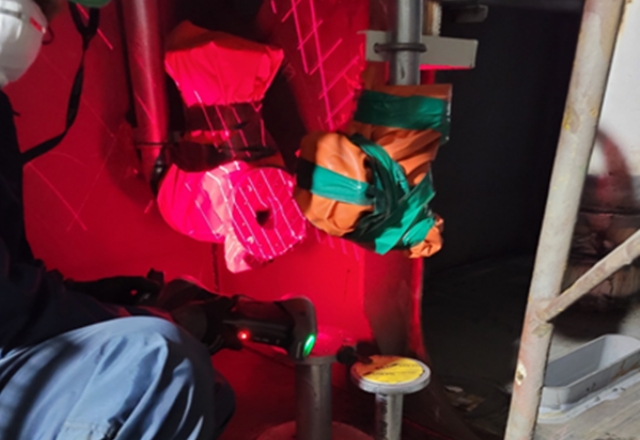

Precision Measurement Using 3D Scanning Technology
- Enables high-precision measurement while ensuring worker safety even in confined spaces
- Accuracy: Within 0.04 mm
Engineering

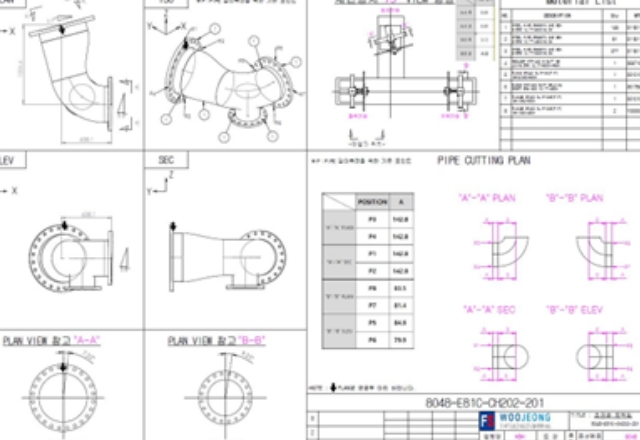

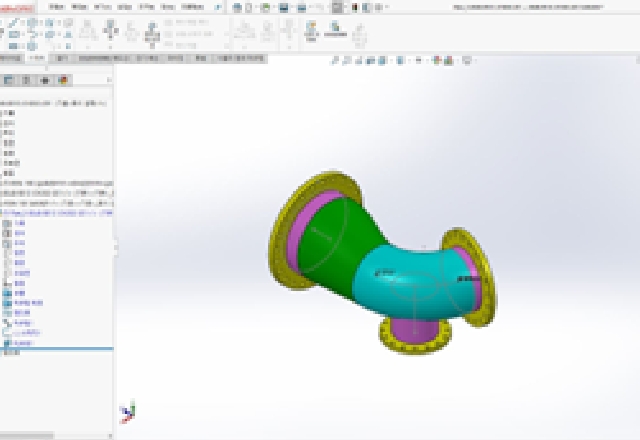

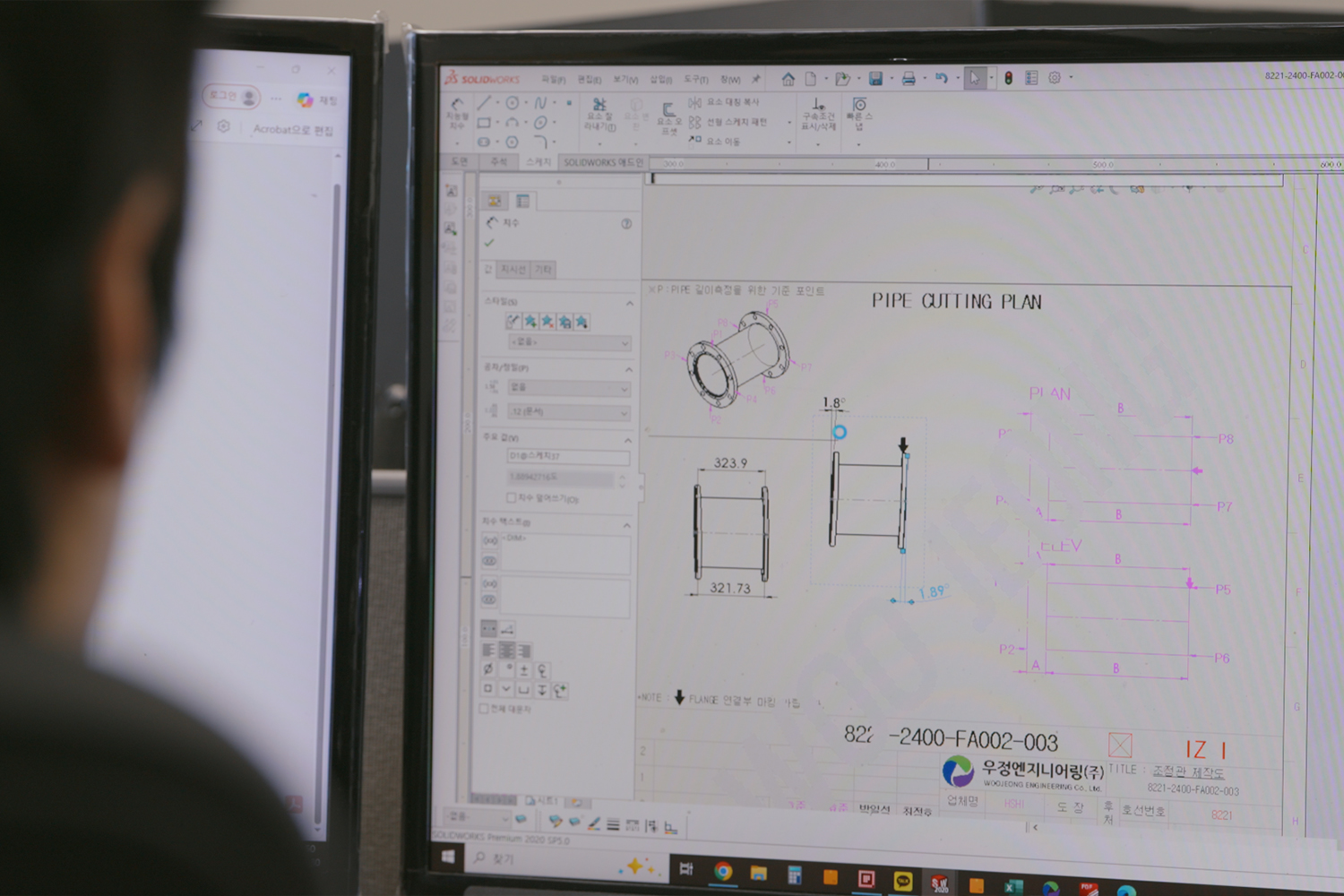

3D Modeling and 2D Manufacturing Engineering
- Creation of 3D scan-based modeling
- Data extraction based on 3D models and preparation of 2D Manufacturing Engineering
Materials

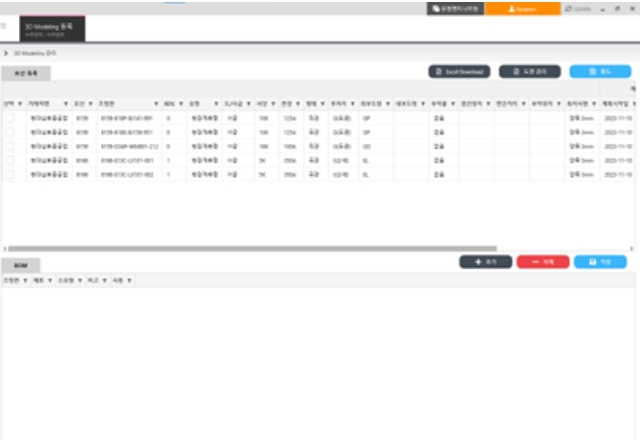

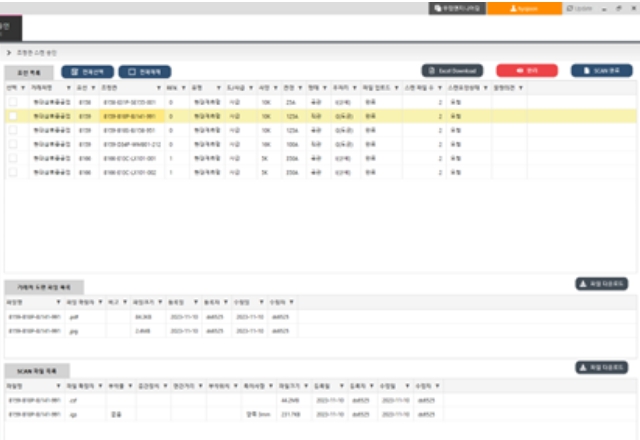

Adjustment Pipe “Integrated Production Management System” In use at HD Hyundai Mipo since Dec. 2024
- Acquisition and digitalization of shipyard drawing information
- 3D scanning and management of Engineering/geometry data for Adjustment Pipe
- History management for drawing creation and issuance
- Real-time monitoring by production process
- Real-time integration with Automatic equipment for Manufacturing data
Cutting

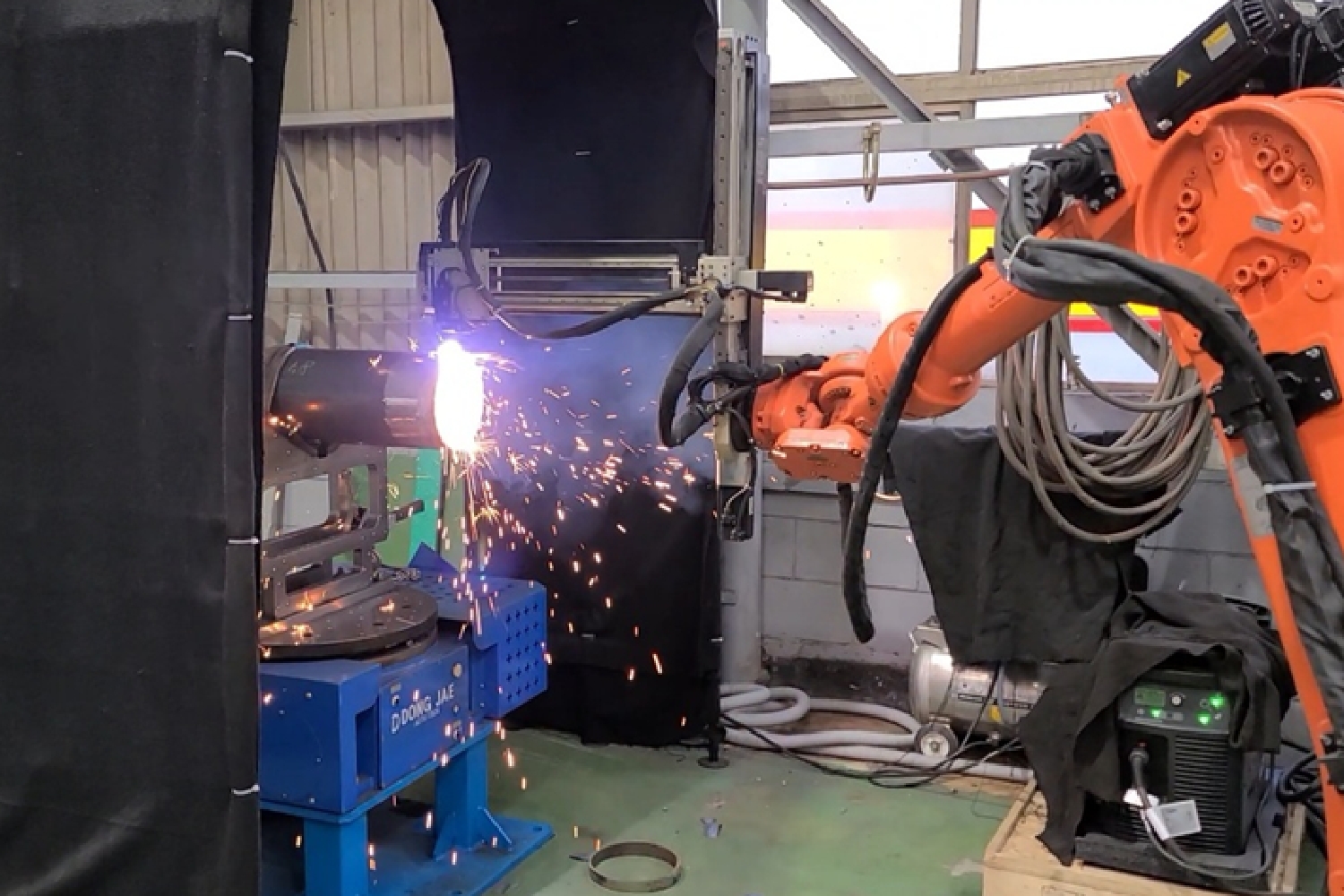

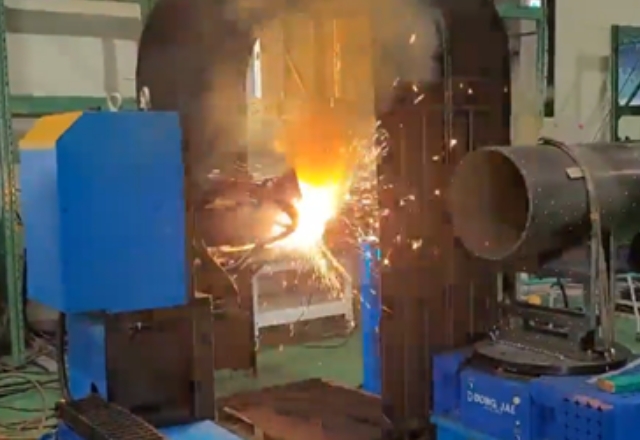

Automatic Cutting System for Adjustment Pipe - Plasma Cutting
- Linked with manufacturing drawing information: Applicable to cutting pipes of 125A and above
- Two types available: automatic cutting robot and automatic cutting system
Reproduction

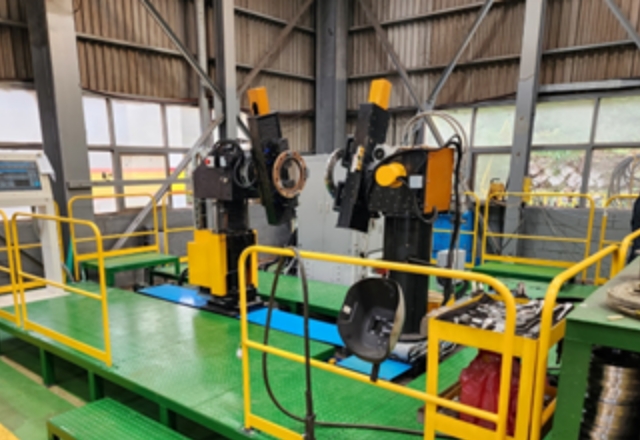

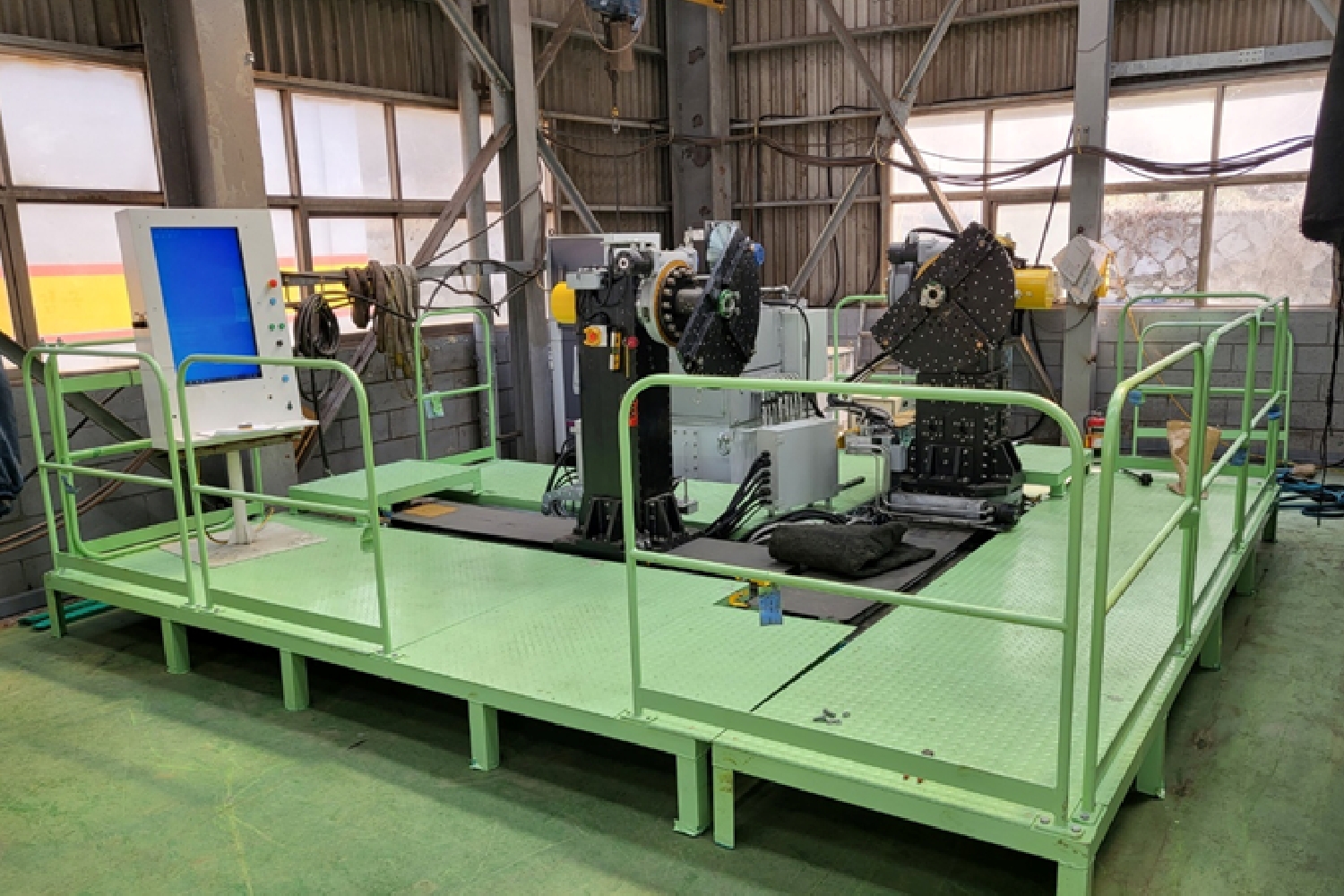

Automatic Reproduction System for Adjustment Pipe
- Ultra-precision on-site Reproduction using 3D measurement data: Applicable to 15A and above
- 3 manual systems and 2 Automatic systems available – length ±1 mm, angle within 0.1°

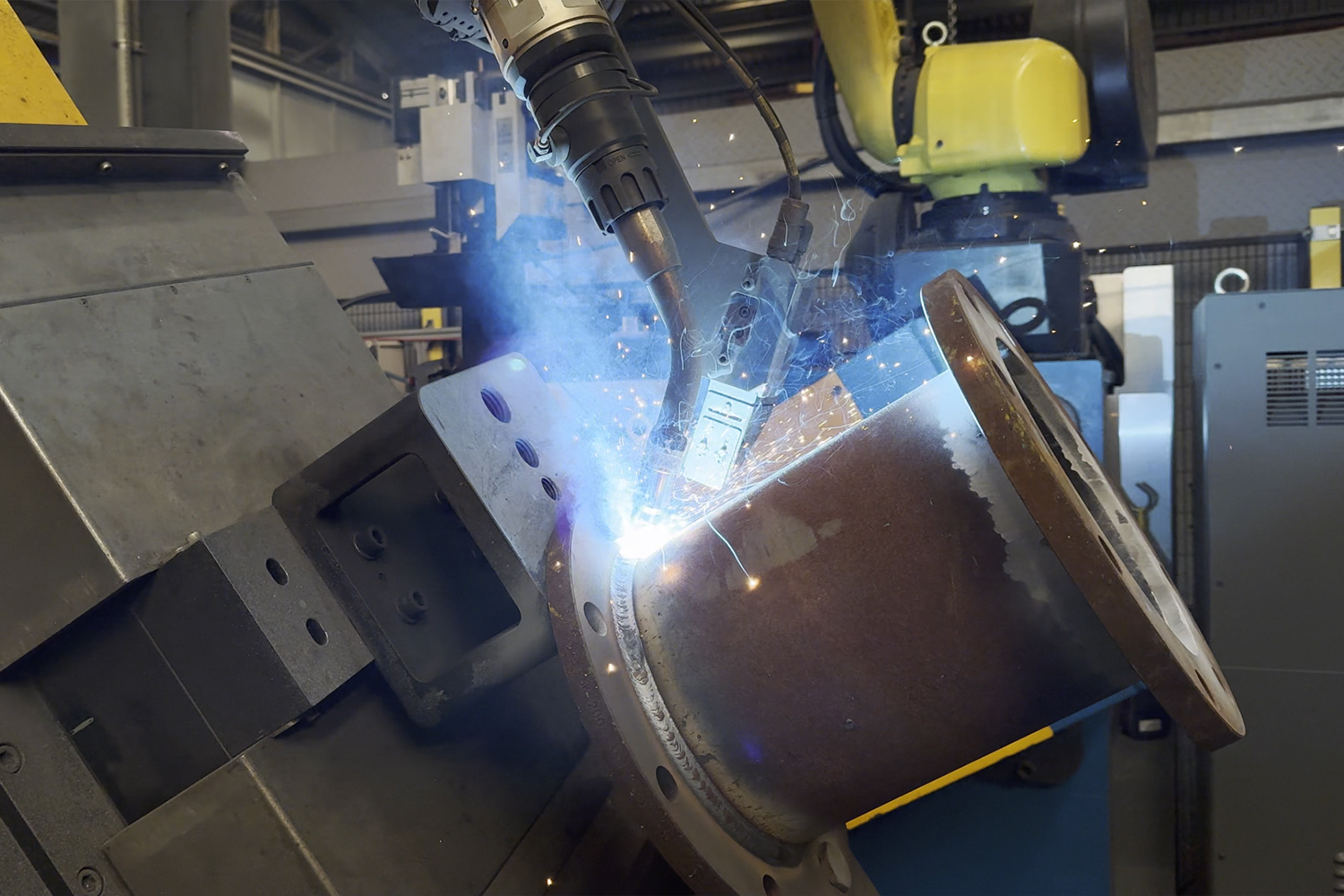

Automatic Welding System for Adjustment Pipe
Overview
- Developed through collaboration with the partner shipyard (HD Hyundai Mipo)
- Installed and operated at the partner’s adjustment pipe manufacturing plant after development completion
- Applicable to welding of adjustment Pipe of 100A and above
Development Status
- 2024: Development of an automatic fillet welding system for Adjustment Pipe
- 2026: Automatic TIG welding system scheduled for development
